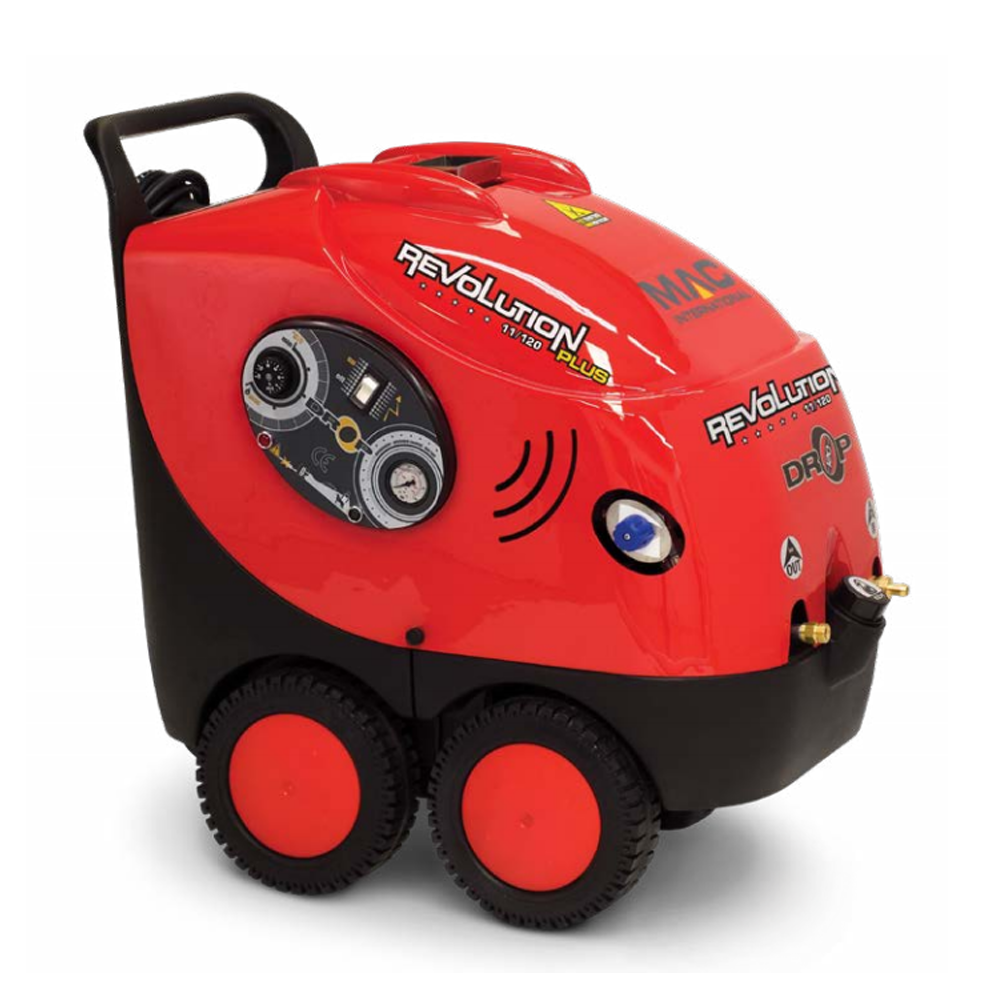

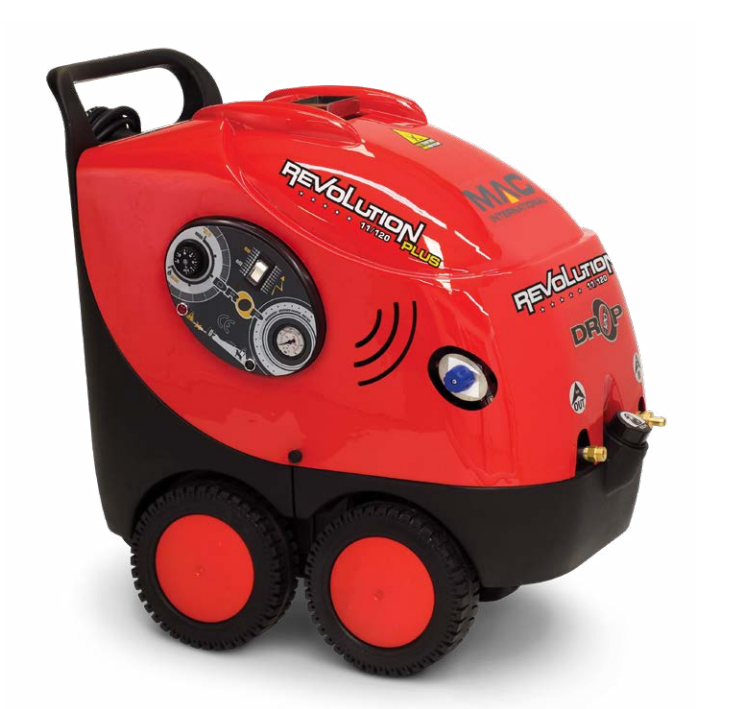

MAC DROP REVOLUTION PLUS

Please click on the link below for full Technical Datasheet

MAC Drop Revolution Plus Datasheet Size: (654.56 KB)
MAC Drop Revolution Brochure Size: (907.21 KB)

You will need Adobe Reader or similar to view the pdf, if you do not have Adobe Reader click here to download.

Description

DESCRIPTION

SPECIFICATION

Top Machine Specification in a Compact Design.Standard Features:
- Tough GRP plastic chassis and cover
- Annovi Reverberi RC 11.17 pump
- Industrial 1450rpm 4 pole electric Nicolini motor
- Automatic stop/start system
- Efficient M1 boiler system with double spiral coil
- Stainless steel water tank
- High pressure chemical system
- 7lt internal detergent tank in GRP
- 22lt internal fuel tank in GRP
- 4 large robust wheels for tough terrain
- Bypass valve and safety valve
- Burner control with pressure switch and thermostat
- Including 10mt high pressure hose, single lance and heavy-duty trigger
All these standard features PLUS:
- Leak detection
- Flame failure which provides low fuel cut out
