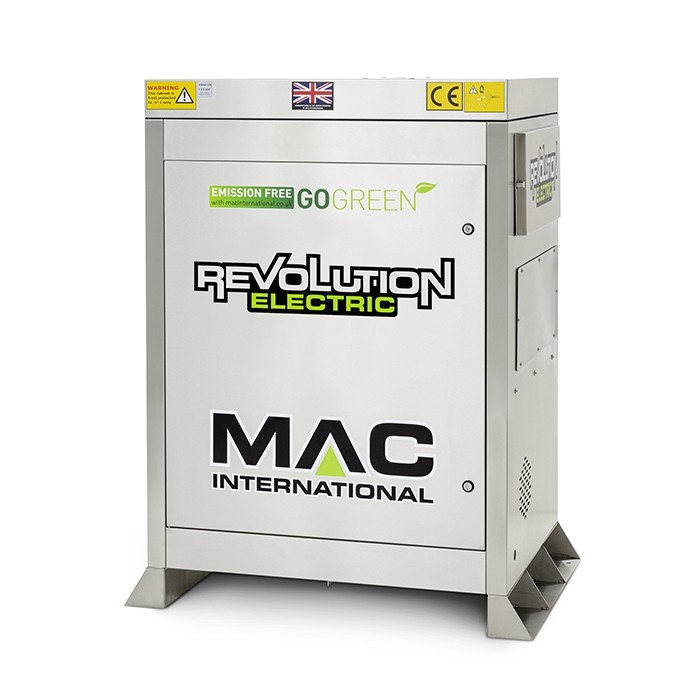

MAC REVOLUTION S.S. ELECTRIC 24KW – 150BAR

Please click on the link below for full Technical Datasheet

Product Attachments

You will need Adobe Reader or similar to view the pdf, if you do not have Adobe Reader click here to download.



Category:

Description

DESCRIPTION
SPECIFICATION

A REAL REVOLUTION IN ELECTRICALLY HEATED PRESSURE WASHING

21TECH is the new user-friendly operating system designed to improve and enhance traditional safety and technical features within the Static Pressure Washer range, targeting problem areas on the user’s site.

The new and improved features will provide customers with total confidence that the equipment has been designed and thought through in the very best way possible, to avoid all the traditional problems that can arise from misuse and abuse.

STANDARD FEATURES



  • Max 80°c with market leading heat retention
  • 170lt stainless steel insulated water tank
  • High-quality, powder coated steel cabinet
  • Timed total stop shutdown system
  • Available up to 24kw heating power
  • 6 standard models with additional bespoke options available
  • High temperature pumps
  • Low revving 1450rpm motor
  • Double insulated stainless steel hot water tank

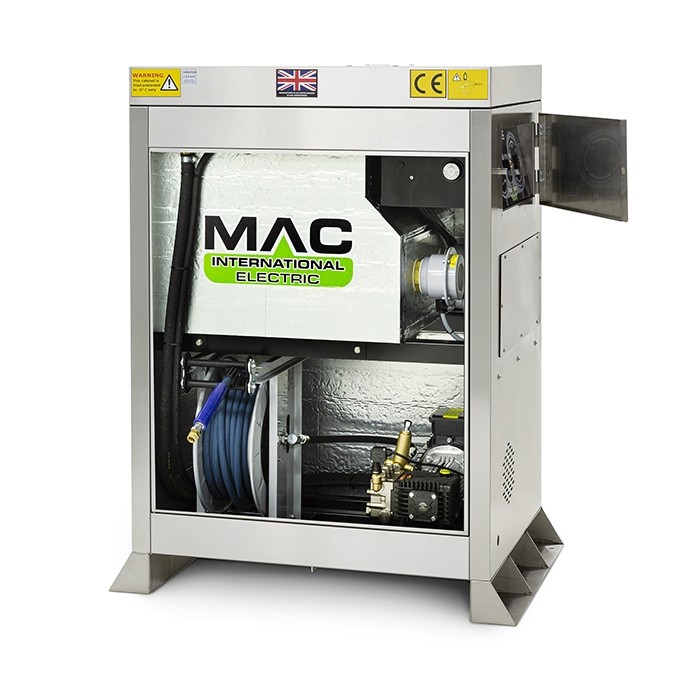

  • Easy access for servicing with hinged lid and removable hinged front door
  • Double insulated hot water tank
  • Low thermal loss in standby
  • Easy to use control panel
  • Full stainless steel cabinet option available
  • Available with MAC 18/24 Technology for 32amp, 400v power supplies



CABINET FINISH

  • Full 316L stainless steel cabinet with lockable controls
  • Lockable stainless steel front door
  • Hinged and removable cabinet front door and lid

Also available in powder coated steel – Revolution Electric


TypeStatic
Motor Specification4hp, 3kW, 1450rpm
Heating Power24kW
Pressure150bar / 2175psi
Power Supply415v
Shutdown SystemTimed total stop
Temperature80˚C Max Heat
Water Flow10 litres
Water Tank Capacity170 litres
